Apple iPhone 17 Pro Max 1TB

BASIC INFO

Brand

Apple

Model

iPhone 17 Pro Max

Status

Available

Released

2025, September 09

BODY

Dimensions

163.4 x 78 x 8.8 mm (6.43 x 3.07 x 0.35 in)

Weight

233 g (8.22 oz)

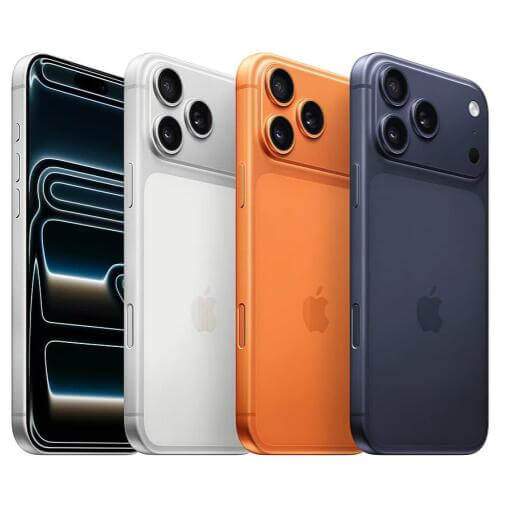

Colors

Silver, Cosmic Orange, Deep Blue

Material

Glass front (Ceramic Shield 2), aluminum alloy frame, aluminum alloy back/ glass back (Ceramic Shield)

SIMs

Nano-SIM + eSIM + eSIM (max 2 at a time; International)

eSIM + eSIM (8 or more, max 2 at a time; USA)

Nano-SIM + Nano-SIM (China)

Water/Dust

IP68 dust tight and water resistant (immersible up to 6m for 30 min)

Apple Pay (Visa, MasterCard, AMEX certified)

DISPLAY

Size

6.9 inches

Type

LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 1000 nits (typ), 1600 nits (HBM), 3000 nits (peak)

Resolutions

1320 x 2868 pixels, 19.5:9 ratio

PPI

460 ppi density

Multi touch

Yes

Protection

Ceramic Shield glass 2, Mohs level 5

Anti-reflective coating

NETWORKS

2G

GSM 850 / 900 / 1800 / 1900

CDMA 800 / 1900

3G

HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100

CDMA2000 1xEV-DO

4G

1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 48, 53, 66 - A3526

1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 48, 53, 66, 71 - A3257

1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 48, 53, 66, 71 - A3525

1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 48, 66 - A3527

5G

1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 53, 66, 70, 75, 77, 78, 79 SA/NSA/Sub6 - A3526

1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 75, 77, 78, 79, 258, 260, 261 SA/NSA/Sub6/mmWave - A3257

1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 75, 77, 78, 79 SA/NSA/Sub6 - A3525

1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 75, 77, 78, 79 SA/NSA/Sub6 - A3527

Speed

HSPA, LTE, 5G, EV-DO Rev.A 3.1 Mbps

GPRS

Yes

EDGE

Yes

CAMERA

Rear Single

48 MP, f/1.6, 24mm (wide), 1/1.28", 1.22µm, dual pixel PDAF, sensor-shift OIS

48 MP, f/2.8, 100mm (periscope telephoto), 1/2.55", 0.7µm, PDAF, 3D sensor‑shift OIS, 4x optical zoom

48 MP, f/2.2, 13mm, 120˚ (ultrawide), 1/2.55", 0.7µm, PDAF

TOF 3D LiDAR scanner (depth)

Features

Dual-LED dual-tone flash, HDR (photo/panorama)

Videos

4K@24/25/30/60/100/120fps, 1080p@25/30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 60fps), ProRes, ProRes RAW, Apple Log 2, 3D (spatial) video/audio, stereo sound rec.

Front Single

18 MP multi-aspect, f/1.9, (wide), PDAF, OIS

SL 3D, (depth/biometrics sensor)

HDR, Dolby Vision HDR, 3D (spatial) audio, stereo sound rec.
4K@24/25/30/60fps, 1080p@25/30/60/120fps, HDR

HARDWARE

OS

iOS 26

Chipset

Apple A19 Pro (3 nm)

CPU

Hexa-core (2x4.26 GHz + 4xX.X GHz)

GPU

Apple GPU (6-core graphics)

RAM

12GB

Storage

256GB / 512GB / 1TB / 2TB

Card Slot

No

BATTERY

Type

Li-Ion

Capacity

4832 mAh - Nano SIM model

5088 mAh - eSIM only model

Removable

Non-Removable

Talk Time

N/A

Stand By

N/A

Fast Charging

Wired, PD2.0, 50% in 20 min

25W wireless MagSafe/Qi2, 50% in 30 min (15W - China)

4.5W reverse wired

COMMONS

Sound

Loudspeaker Yes, with stereo speakers
3.5mm Jack No

Sensors

Face ID, accelerometer, gyro, proximity, compass, barometer

Ultra Wideband (UWB) support (gen2 chip)

Emergency SOS, Messages and Find My via satellite

Bluetooth

6.0, A2DP, LE

GPS

Yes, with A-GPS, GLONASS, GALILEO, BDS, QZSS, NavIC

USB

USB Type-C 3.2 Gen 2, DisplayPort

Wi Fi

Wi-Fi 802.11 a/b/g/n/ac/6e/7, tri-band, hotspot

NFC

Yes
